Heated Leather Seat Wiring

Started by uktotty, October 29, 2009, 13:07

0 Members and 1 Guest are viewing this topic.

Print
Go Down Pages1
User actions

uktotty

October 29, 2009, 13:07 Last Edit: January 1, 1970, 01:00 by Guest
Seems I have purchased a heated seat.
The guy left the plug and the female plug plug 4 wires.

Question is, what do I do with them?

markiii

#1
October 29, 2009, 13:09 Last Edit: January 1, 1970, 01:00 by Guest
your sure its not teh airbag sensor?
Gallardo Spyder<br />Ex Midnight Blue 911 T4S<br />EX VXR220<br />Ex Custom Turbo 2001 Sahara Sun MR2 Roadster 269bp, 240lbft<br /><br />MR2ROC Committee 2002 - 2009<br /><br />

onion86

#2
October 29, 2009, 13:30 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "markiii"your sure its not the airbag sensor?
Sorry to hijack Russ but does the connector under the seat that makes the annoying, flashing, 'you're not wearing your seatbelt' light also control the airbag sensor? i.e. if it's unplugged my passenger wouldn't get a cushiony pillow if an accident were to take place?
Sable 55 C-One MR2 C2 Turbo - A/C, Black Heated Leather, TTE Twin Exhaust, Cruise Control

markiii

#3
October 29, 2009, 13:31 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "onion86"
Quote from: "markiii"your sure its not the airbag sensor?
Sorry to hijack Russ but does the connector under the seat that makes the annoying, flashing, 'you're not wearing your seatbelt' light also control the airbag sensor? i.e. if it's unplugged my passenger wouldn't get a cushiony pillow if an accident were to take place?

correct to my knowledge
Gallardo Spyder<br />Ex Midnight Blue 911 T4S<br />EX VXR220<br />Ex Custom Turbo 2001 Sahara Sun MR2 Roadster 269bp, 240lbft<br /><br />MR2ROC Committee 2002 - 2009<br /><br />

uktotty

#4
October 29, 2009, 13:34 Last Edit: January 1, 1970, 01:00 by Guest
Goes to take a pic!

onion86

#5
October 29, 2009, 13:36 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "markiii"
Quote from: "onion86"
Quote from: "markiii"your sure its not the airbag sensor?
Sorry to hijack Russ but does the connector under the seat that makes the annoying, flashing, 'you're not wearing your seatbelt' light also control the airbag sensor? i.e. if it's unplugged my passenger wouldn't get a cushiony pillow if an accident were to take place?

correct to my knowledge
Ah best reconnect that then!
Sable 55 C-One MR2 C2 Turbo - A/C, Black Heated Leather, TTE Twin Exhaust, Cruise Control

uktotty

#6
October 29, 2009, 13:45 Last Edit: January 1, 1970, 01:00 by Guest

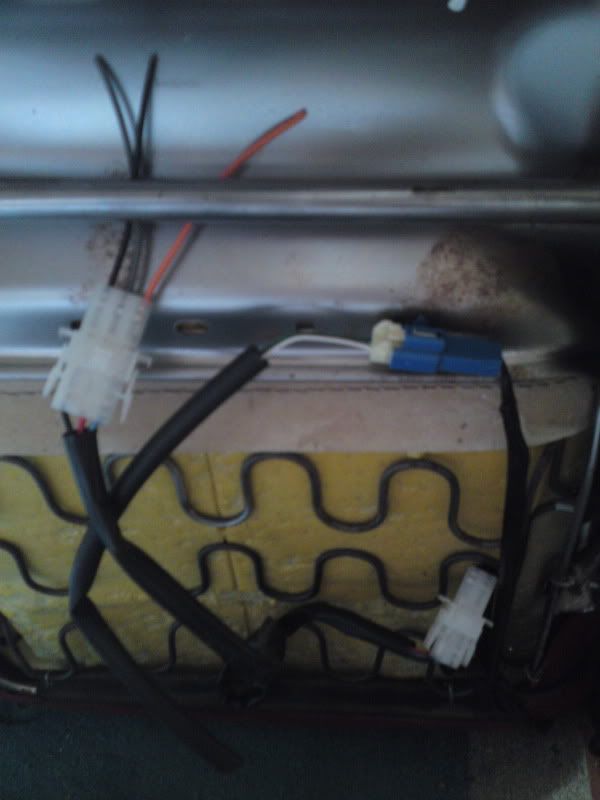

3 lots of wiring
Airbag
Seatbelt
Heater??????????????

Tem

#7
October 29, 2009, 14:28 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "uktotty"Heater??????????????

I'd guess red=12v, both black are ground...

You have a multimeter? Measure the resistance between red and black, should be few ohms.

Make sure you measure in coldish place, where the possible thermostat isn't open.
Sure you can live without 500hp, but it\'s languishing.

Chris

#8
October 29, 2009, 19:12 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "uktotty"3 lots of wiring
Airbag
Seatbelt
Heater??????????????

Yep, does look like the connectors I have on my heated seats (anyone know where those connectors can be bought by the way??)

The original gb/install thread is probbably still around on here somewhere, but basically they feed off the fag lighter circuit and go to two buttons in the centre console..
[size=100]
2004 Maroon Lotus Elise 111R[/size]
[size=80]Ex 2004 Red 6sp MT TTE Turbo
Ex 2003 Astral Black 6sp SMT
Ex 2002 Lagoon Blue 5sp MT
[/size]

uktotty

#9
October 29, 2009, 19:13 Last Edit: January 1, 1970, 01:00 by Guest
Buttons on the console?
Anyone got a pic of them?

wbarrwebster

#10
October 29, 2009, 20:33 Last Edit: January 1, 1970, 01:00 by Guest
Hi,

There was a thread with pics that showed  the retro fit round buttons that were fitted in the center console.

There is also  a thread on here detailing my retro fitting the heated pads using the two  OE oblong switches that sit on the spaces to the LHS of the steering wheel.

Wires from the seats went to switches, my fit had a constant live coming from battery and switched live from cigar lighter with a couple of relays in line, if I remember.

If you're still wondering at the weekend, I'll drag my backside under the seats and relive the experience.

B  s:D :D s:D
W. B. Webster

roger

#11
October 29, 2009, 21:09 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "uktotty"Buttons on the console?
Anyone got a pic of them?
These are the ones that came with the GB loom.

These
are the ones that came with the GB loom.
Roger

EX: \'04 Sable + PE Turbo and many other things
NOW: MR2 on steroids - \'12 Merc SLK200 AMG125

Use Spydersearch if you are stuck for information. Please.
Check my fuel consumption

Tem

#12
October 30, 2009, 08:45 Last Edit: January 1, 1970, 01:00 by Guest
I don't think that's from the GB, IIRC, they all had 2-wire connectors. That one has three. It does have very similar connector though, probably cause someone said the UK heated seats have same elements as I sourced for the GB's too. But apparently not identical.

Do the UK seats have two temp ranges or something?

I still bet it just wants 12V on some wires and you can measure them and figure it out.  s8) 8) s8)
Sure you can live without 500hp, but it\'s languishing.

uktotty

#13
October 30, 2009, 11:28 Last Edit: January 1, 1970, 01:00 by Guest
Its red, black and grey on those 3 wires

uktotty

#14
October 30, 2009, 19:49 Last Edit: January 1, 1970, 01:00 by Guest
just to clarify, its ORANGE, BLACK and GREY

So my guess is
Upper heat pad
Lower Heat pad
Ground?

Tem

#15
October 31, 2009, 15:44 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "uktotty"just to clarify, its ORANGE, BLACK and GREY

So my guess is
Upper heat pad
Lower Heat pad
Ground?

Just measure them and stop guessing.  s:lol: :lol: s:lol:

Makes no sense to have separate wires for both pads. It would make sense if it had lo and hi positions on the switch.
Sure you can live without 500hp, but it\'s languishing.

wbarrwebster

#16
October 31, 2009, 18:37 Last Edit: January 1, 1970, 01:00 by Guest
Quote from: "Tem"
Quote from: "uktotty"just to clarify, its ORANGE, BLACK and GREY

So my guess is
Upper heat pad
Lower Heat pad
Ground?

Just measure them and stop guessing.  s:lol: :lol: s:lol:

Makes no sense to have separate wires for both pads. It would make sense if it had lo and hi positions on the switch.


The original heated seats I have DO have hi and lo  positions on the OE switches!

B
W. B. Webster

uktotty

#17
November 1, 2009, 10:35 Last Edit: January 1, 1970, 01:00 by Guest
Cheers B, that makes much more sense now as these are OEM seats
